28mm 简易模组

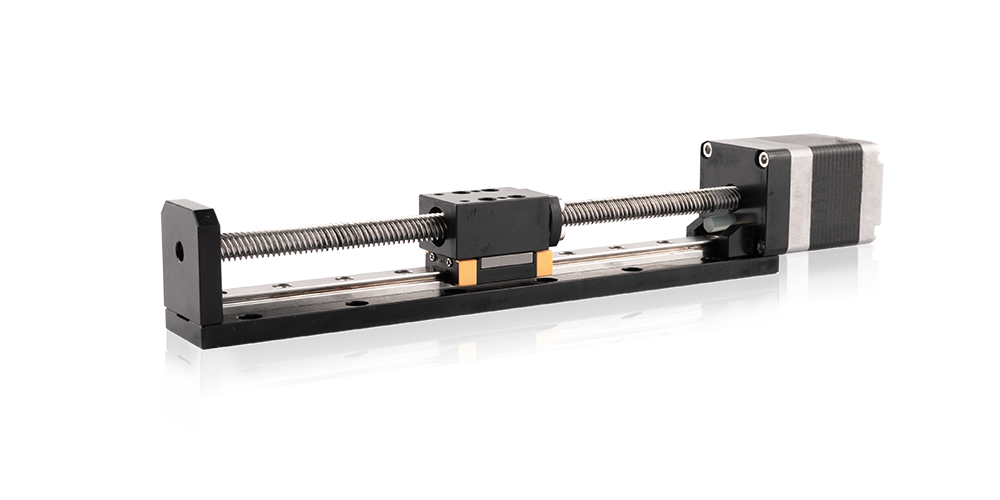

基于我司平台产品高精度的丝杆电机, 自主设计开发的28mm简易直线模组, 产品结构紧凑牢靠, 精度良好, 可选行程, 导程多样性高, 定制化水平高, 可为客户提供集成式定制解决方案。

28mm简易模组

电机规格参数

In a mobile environment, you can move left and right to see the contents (tables).

电机 电压[V] 电流[A] 电阻[Ω] 电感[mH] 引线数量 机身长度[mm]
11E2105 4.55 0.5 9.1 6 4 33.35
11E2110 2.1 1 2.1 1.5 4 33.35
11E2209 3.9 0.95 4.1 4 4 45
11E2216 2.4 1.6 1.5 1.3 4 45

可选丝杆与步长

In a mobile environment, you can move left and right to see the contents (tables).

丝杆直径 [inch] 丝杆直径[mm] 导程[inch] 导程 [mm] 导程代码 步长 @ 1.8° [mm]
0.188 4.77 0.0125 0.3175 AL 0.0016
0.188 4.77 0.025 0.635 A 0.003175
0.188 4.77 0.05 1.27 D 0.00635
0.188 4.77 0.1 2.54 K 0.0127
0.188 4.77 0.2 5.08 R 0.0254
0.188 4.77 0.4 10.16 X 0.0508
丝杆直径可根据客户要求定制,请联系我司销售工程师。

外形尺寸图

行程规格

In a mobile environment, you can move left and right to see the contents (tables).

尺寸A
(mm)
行程B
(mm)
72 20
92 40
112 60
132 80
152 100
202 150
252 200
302 250

更多行程规格,可联系我司销售工程师
