| 型号 |
额定电压 (V) |
电流 (Rms A) |
电阻 (Ω) |
电感 (mH) |
保持力矩 (N·m) |
定位力矩 (N·m) |
电机长度 (mm) |
|---|---|---|---|---|---|---|---|
| 6HS2030 | 6.6 | 0.25 | 23 | 4 | 0.005 | 0.001 | 32 |

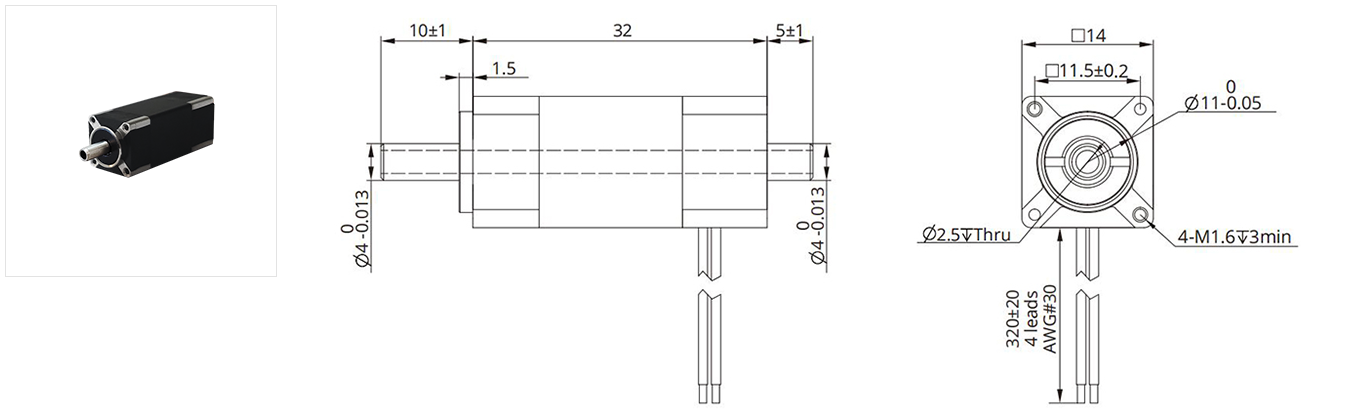

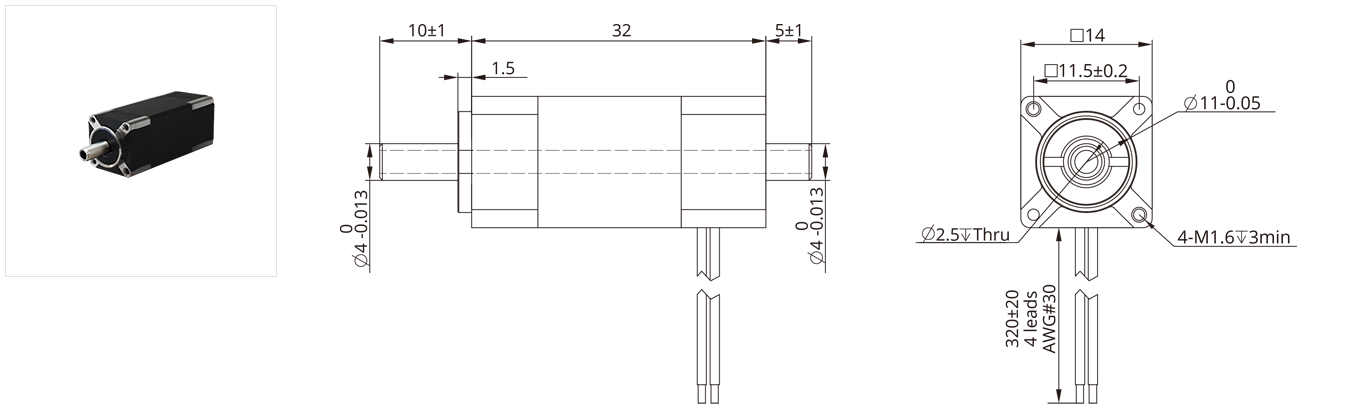

![Size 6[14mm]](/uploadfile/2023/1010/20231010015810961.png)
In a mobile environment, you can move left and right to see the contents (tables).

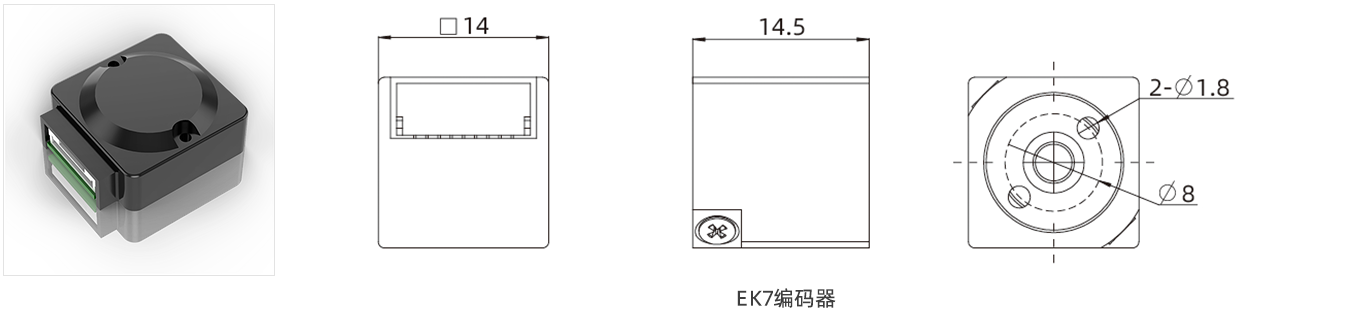

| 分辨率 | 250 | 256 | 500 | 512 | 1000 | 1024 | 2000 | 2048 | 4000 | 4096 |
| 单端输出 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| 分辨率 | - | - | - | 1000 | - | - | 2000 | - | - | - |
| 单端 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| 差分 | A | B | C | D | E | F | G | H | I | J |
