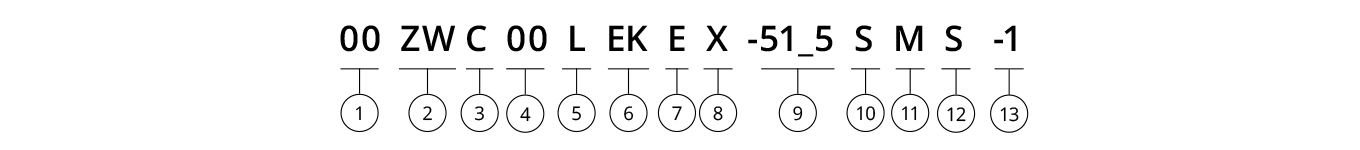

命名方式

命名方式

In a mobile environment, you can move left and right to see the contents (tables).

① 机座号(mm)

In a mobile environment, you can move left and right to see the contents (tables).

尺寸(mm) 16 22 28 36 42 57 60 86
② 直流无刷 C=圆形
S=方形
③ 机身长度 mm
④ 机壳 L=有机壳
X=无机壳
⑤ 配件 EK X=配置编码器
B=刹车
G 00=齿轮箱 传动比
⑥ 结构 E=外部驱动式
N=贯通式
C=C型固定轴式
K=K型固定轴式
⑦ 丝杆导程代码 BS 00=滚珠丝杆 导程
X=梯形丝杆
⑧ 丝杆长度 注:长度带“.”时以“_”表示
⑨ 丝杆表面处理 T=特氟龙涂层
S=无涂层
⑩ 丝杆末端加工 M=公制
U=英制
S=光轴
C=客户定制
N=无加工
⑪ 螺母类型 S=标准法兰螺母
A=消隙螺母
C=客户定制
⑫ 定制序列号
例如

In a mobile environment, you can move left and right to see the contents (tables).

型号 57ZWS40L-001
说明 57mm常规机座
方形直流无刷电机
机身长度40mm
带机壳
第001定制
