命名方式

命名方式

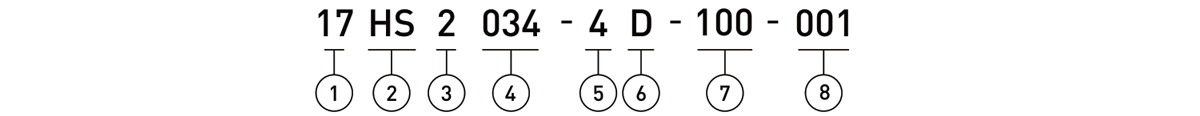

请根据以下命名规则选择合适的产品型号

In a mobile environment, you can move left and right to see the contents (tables).

① 机座(mm)

In a mobile environment, you can move left and right to see the contents (tables).

代码 6 8 11 14 17 23 34
尺寸(mm) 14 20 28 35 42 57 86
② 电机类型 HS = 空心轴
③ 步距角(°) 2 = 2 相1.8°
4 = 2 相0.9°
④ 电机厚度/叠厚 034 = 34mm
⑤ 线数 4 = 双极性(4线)
6 = 单极性(6线)
⑥ 出轴形式 S = 单出轴
D = 双出轴
* 定制非标轴,请联系公司销售代表及技术支持
⑦ 额定电流 100 = 1.0A
⑧ 定制序列号
例如

In a mobile environment, you can move left and right to see the contents (tables).

例如 17HS2034-4D-100-001
说明 机座尺寸42mm
空心轴步进电机
步距角1.8°
电机厚度34mm
4线
双出轴
额定电流1.0A
定制序列号001
