| 电机 | 相电压[V] | 相电流[A] | 相电阻[Ω] | 相电感[mH] | 重量[g] | 引线数量 | 电机长度[mm] |
|---|---|---|---|---|---|---|---|
| 23-2110 | 6.4 | 1 | 6.4 | 16.4 | 585 | 4 | 45 |
| 23-2120 | 3.5 | 2 | 1.75 | 4.1 | 585 | 4 | 45 |
| 23-2130 | 2.4 | 3 | 0.8 | 1.7 | 585 | 4 | 45 |
| 23-2210 | 11.5 | 1 | 11.5 | 32 | 880 | 4 | 65 |
| 23-2225 | 5 | 2.5 | 2 | 5.2 | 880 | 4 | 65 |
| 23-2240 | 2.8 | 4 | 0.7 | 2 | 880 | 4 | 65 |
电机绝缘等级B，温升80℃，使用环境温度-20℃~55℃
In a mobile environment, you can move left and right to see the contents (tables).

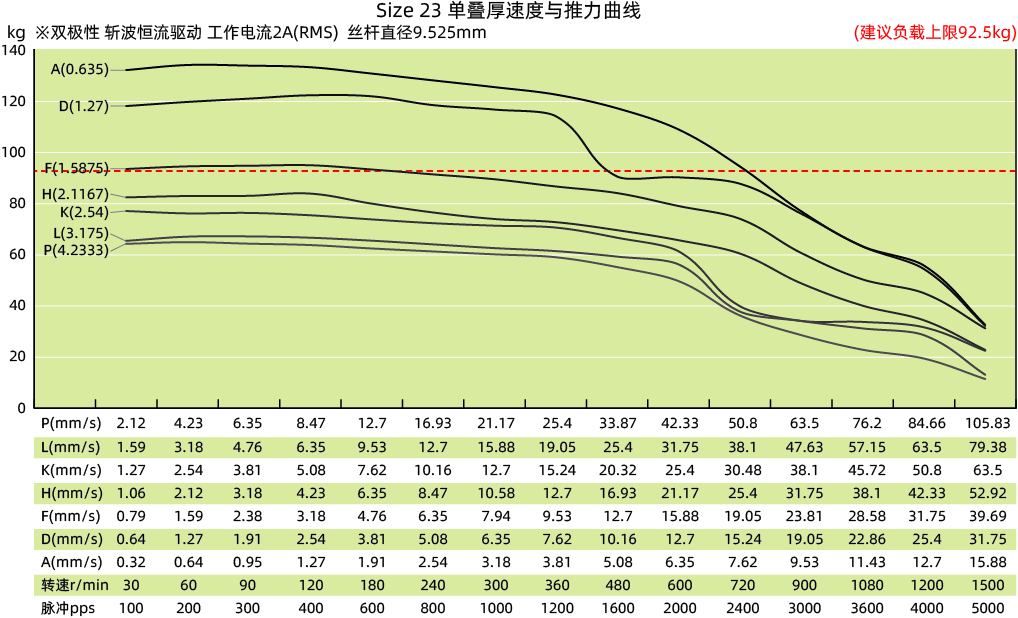

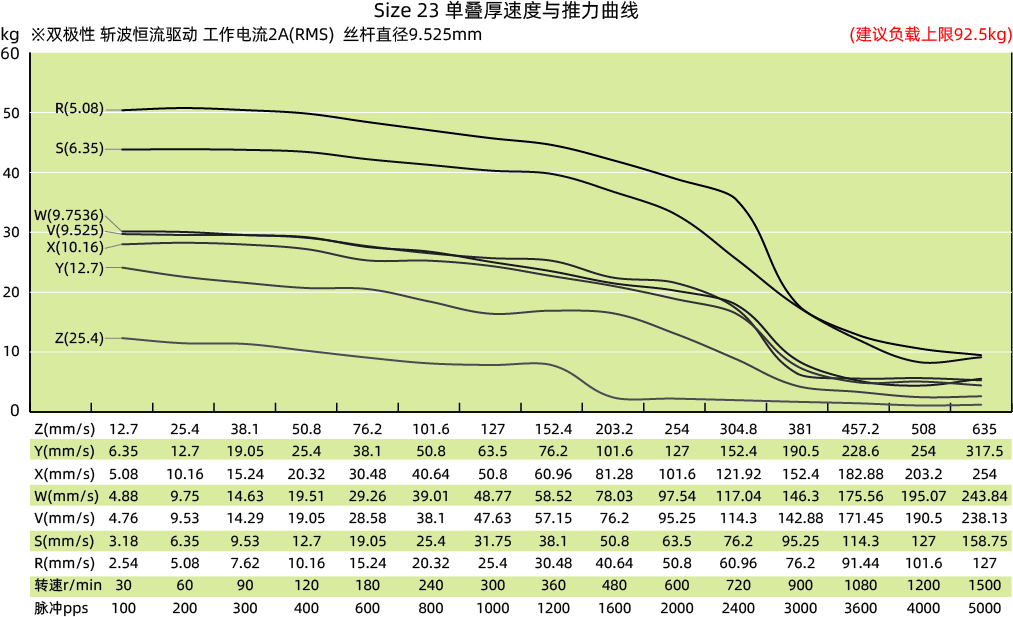

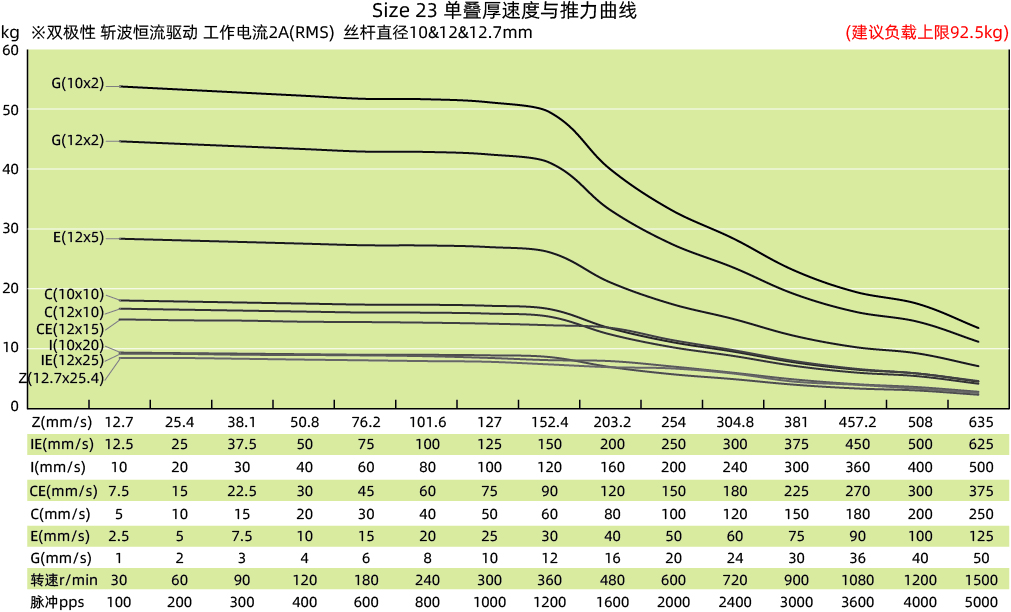

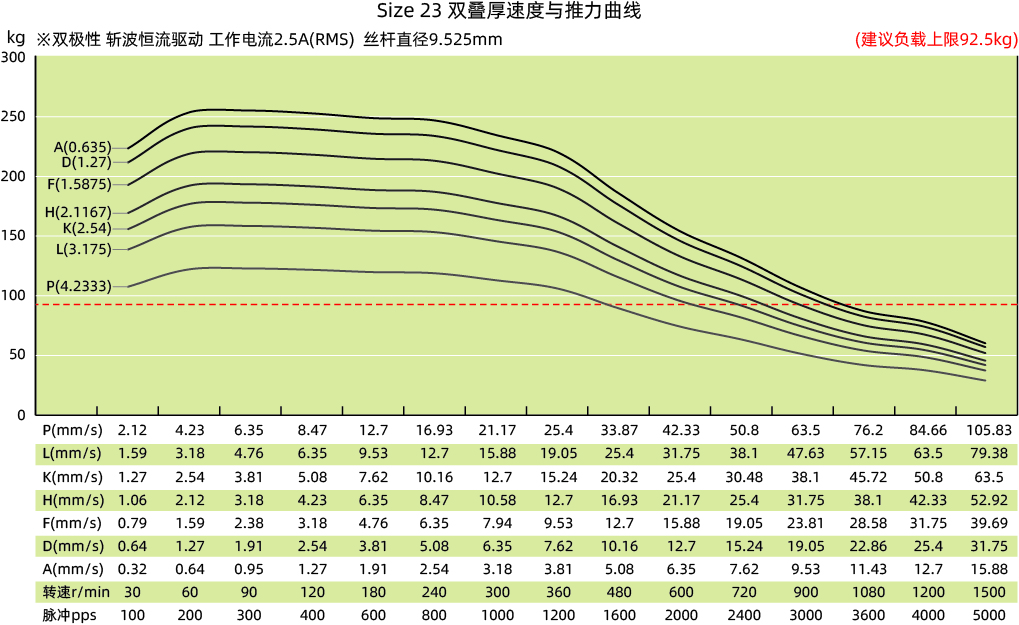

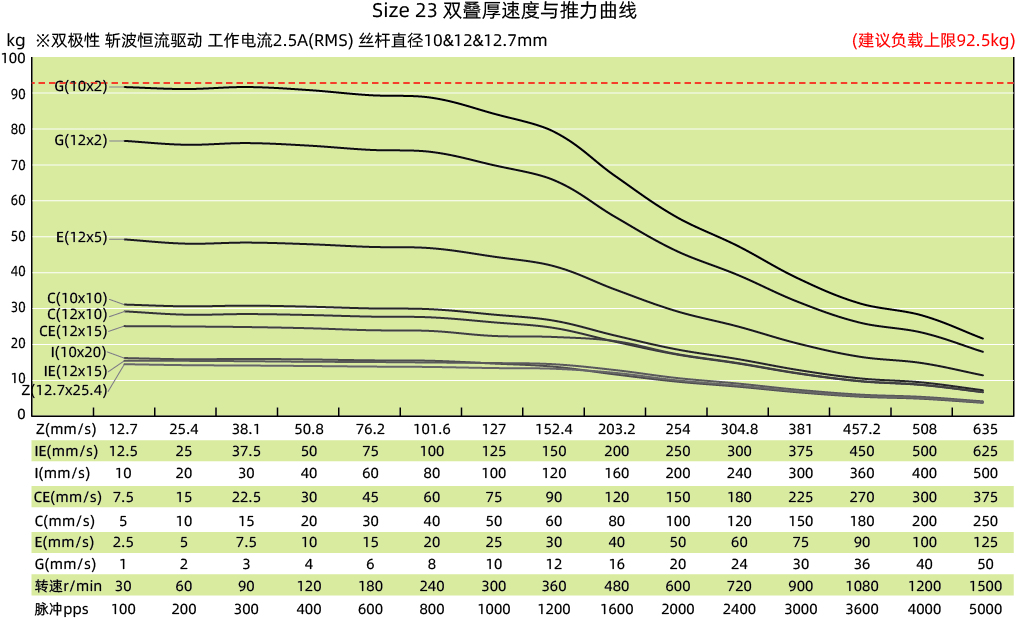

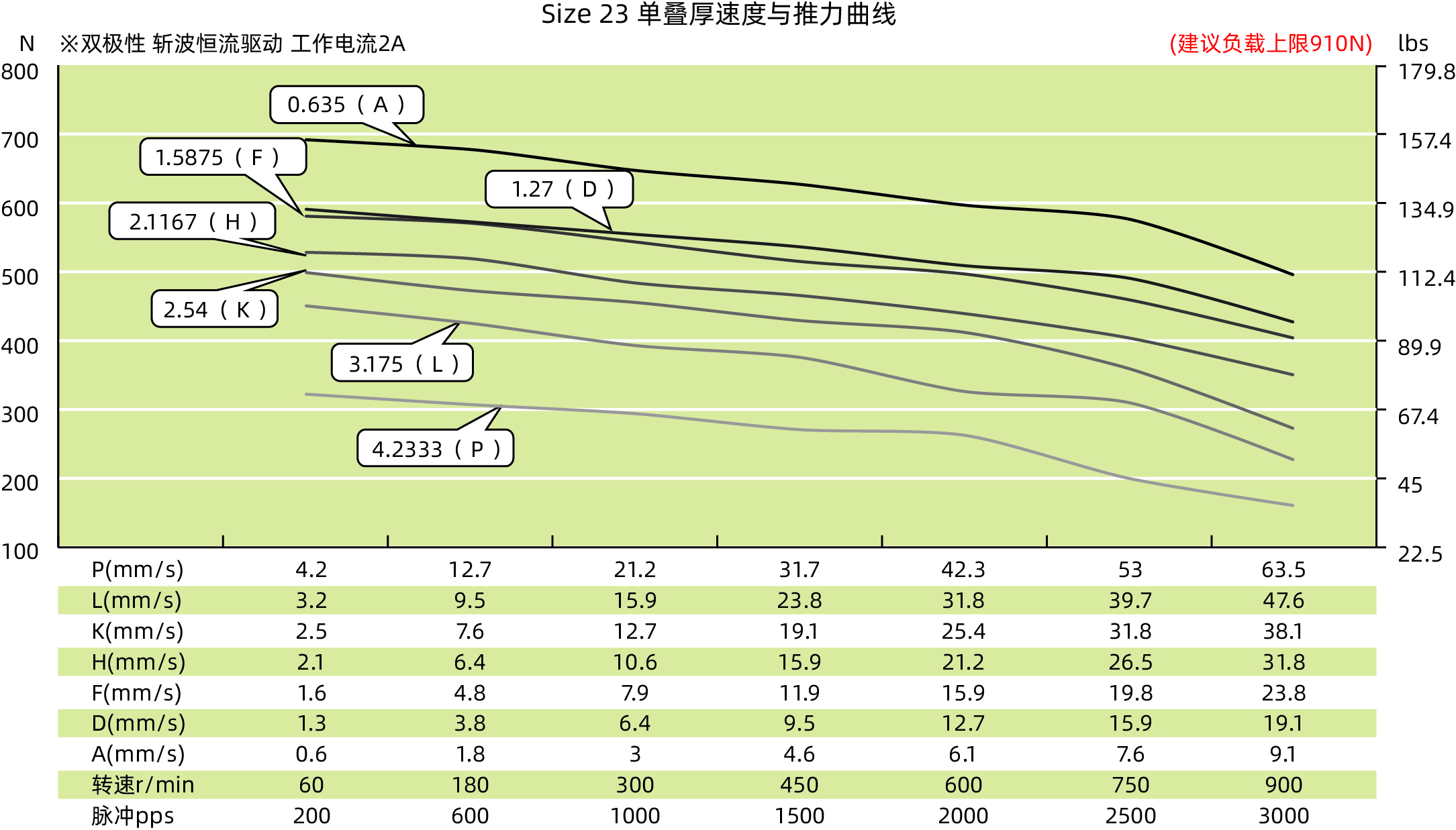

| 丝杆直径 [inch] | 丝杆直径[mm] | 导程[inch] | 导程 [mm] | 导程代码 | 步长 @ 1.8° [mm]* | 步长 @ 0.9° [mm]* |
|---|---|---|---|---|---|---|
| 0.315 | 10 | 0.079 | 2 | G | 0.01 | 0.005 |
| 0.375 | 9.525 | 0.025 | 0.635 | A | 0.0032 | 0.0016 |
| 0.375 | 9.525 | 0.05 | 1.27 | D | 0.0064 | 0.0032 |
| 0.375 | 9.525 | 0.0625 | 1.5875 | F | 0.0079 | 0.004 |
| 0.375 | 9.525 | 0.083 | 2.1167 | H | 0.0106 | 0.0053 |
| 0.375 | 9.525 | 0.1 | 2.54 | K | 0.0127 | 0.0064 |
| 0.375 | 9.525 | 0.125 | 3.175 | L | 0.0159 | 0.0079 |
| 0.375 | 9.525 | 0.167 | 4.2333 | P | 0.0212 | 0.0106 |
| 0.375 | 9.525 | 0.2 | 5.08 | R | 0.0254 | 0.0127 |
| 0.375 | 9.525 | 0.25 | 6.35 | S | 0.0318 | 0.0159 |
| 0.375 | 9.525 | 0.375 | 9.525 | V | 0.0476 | 0.0238 |
| 0.375 | 9.525 | 0.384 | 9.7536 | W | 0.0488 | 0.0244 |
| 0.375 | 9.525 | 0.4 | 10.16 | X | 0.0508 | 0.0254 |
| 0.375 | 9.525 | 0.5 | 12.7 | Y | 0.0635 | 0.0318 |
| 0.375 | 9.525 | 1 | 25.4 | Z | 0.127 | 0.0635 |
| 0.394/0.472 | 10/12 | 0.0787 | 2 | G | 0.01 | 0.005 |
| 0.394/0.472 | 10/12 | 0.3937 | 10 | C | 0.05 | 0.025 |
| 0.394 | 10 | 0.7874 | 20 | I | 0.1 | 0.05 |
| 0.472 | 12 | 0.1969 | 5 | E | 0.025 | 0.0125 |
* 四舍五入值
* 电机绕组参数及丝杆长度可根据客户要求定制
* 外部驱动式结构可选择ф15.875mm丝杆装配
|

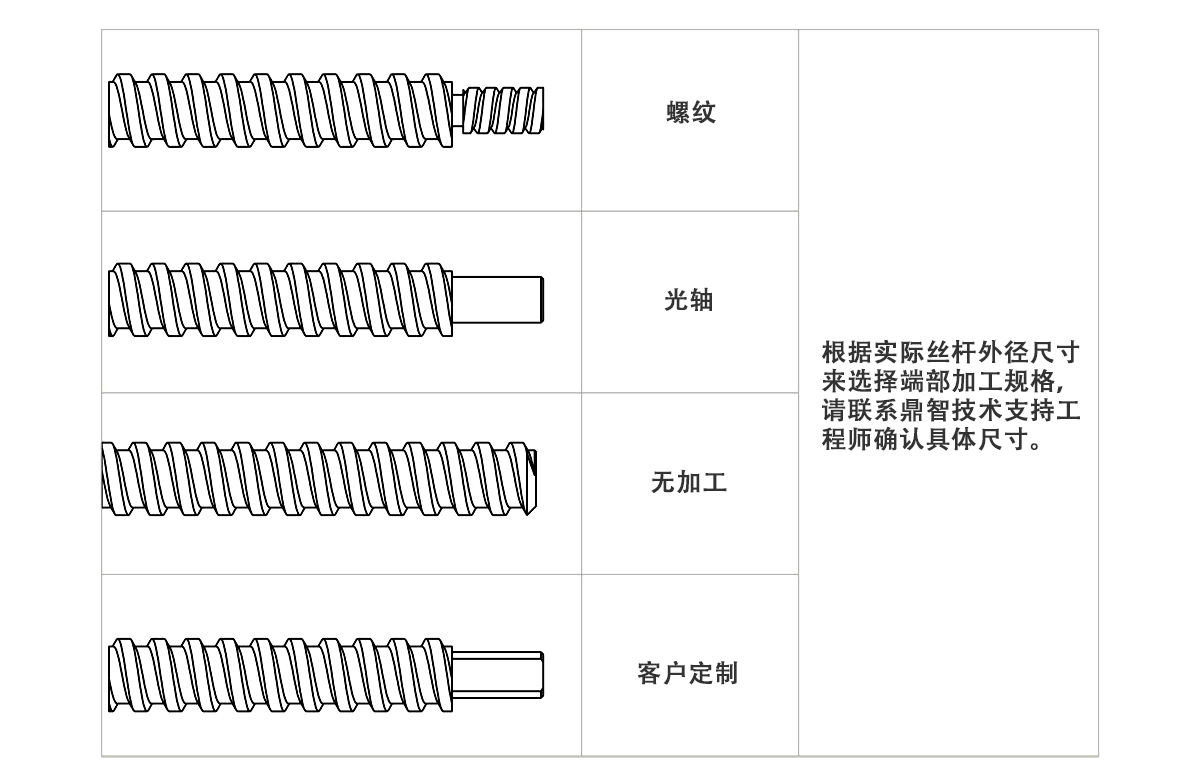

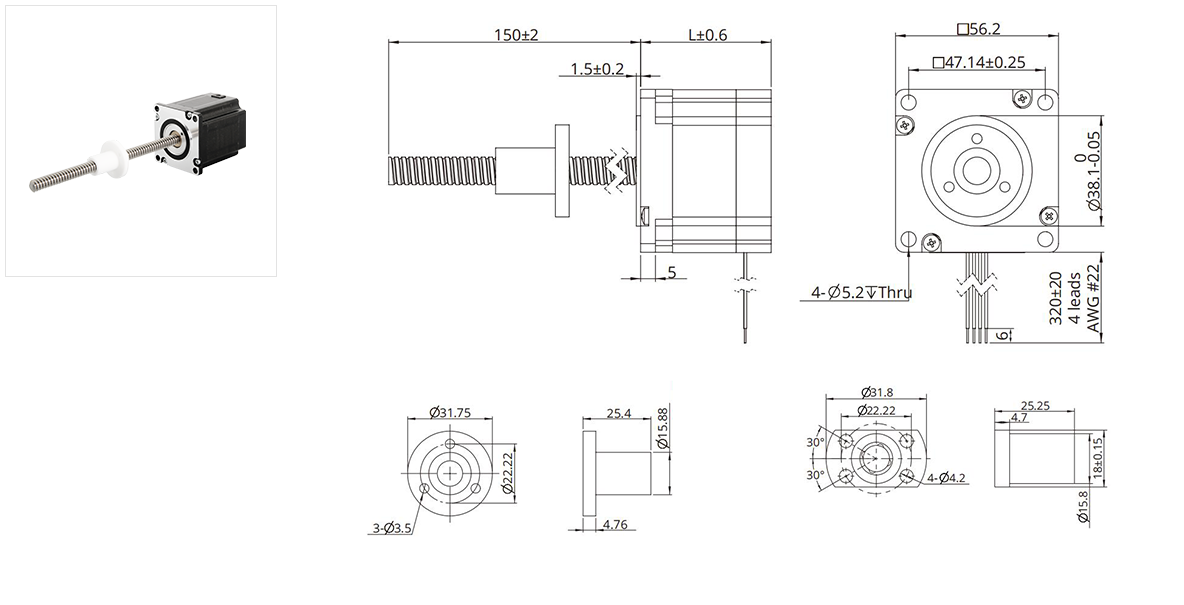

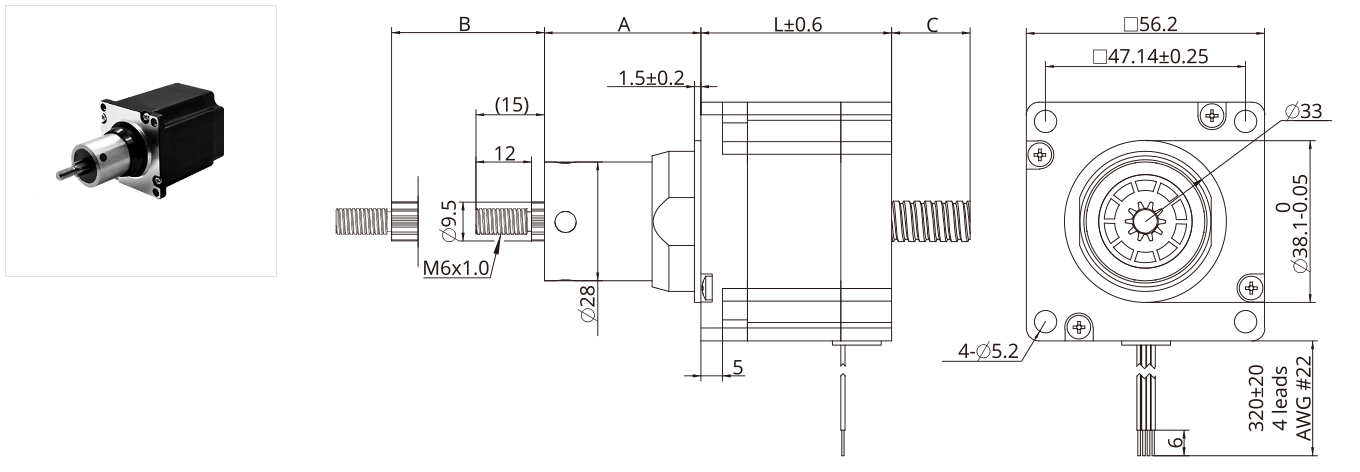

尺寸A (mm) |
行程B (mm) |
尺寸L (mm) | |
|---|---|---|---|
| 45.7 | 12.7 | 单叠厚 电机 45mm |
双叠厚 电机 65mm |
| 52.05 | 19.05 | ||
| 58.4 | 25.4 | ||
| 64.8 | 31.8 | ||
| 71.1 | 38.1 | ||
| 83.8 | 50.8 | ||
| 96.5 | 63.5 | ||
|

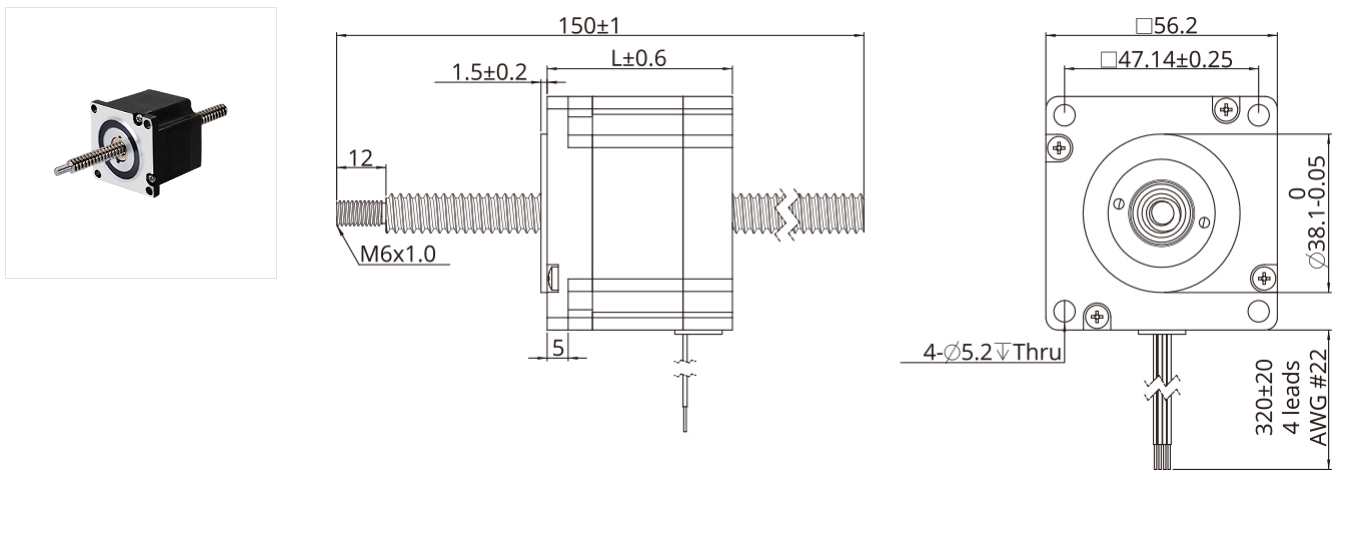

尺寸A (mm) |
行程B (mm) |
尺寸C (mm) | |
|---|---|---|---|
| L=45 | L=65 | ||
| 24.2 | 12.7 | 5.8 | 0 |
| 30.55 | 19.05 | 11.65 | 1.65 |
| 36.9 | 25.4 | 18 | 8 |
| 43.25 | 31.75 | 24.35 | 14.35 |
| 49.6 | 38.1 | 30.7 | 20.7 |
| 62.3 | 50.8 | 43.9 | 33.4 |
| 75 | 63.5 | 56.1 | 46.1 |

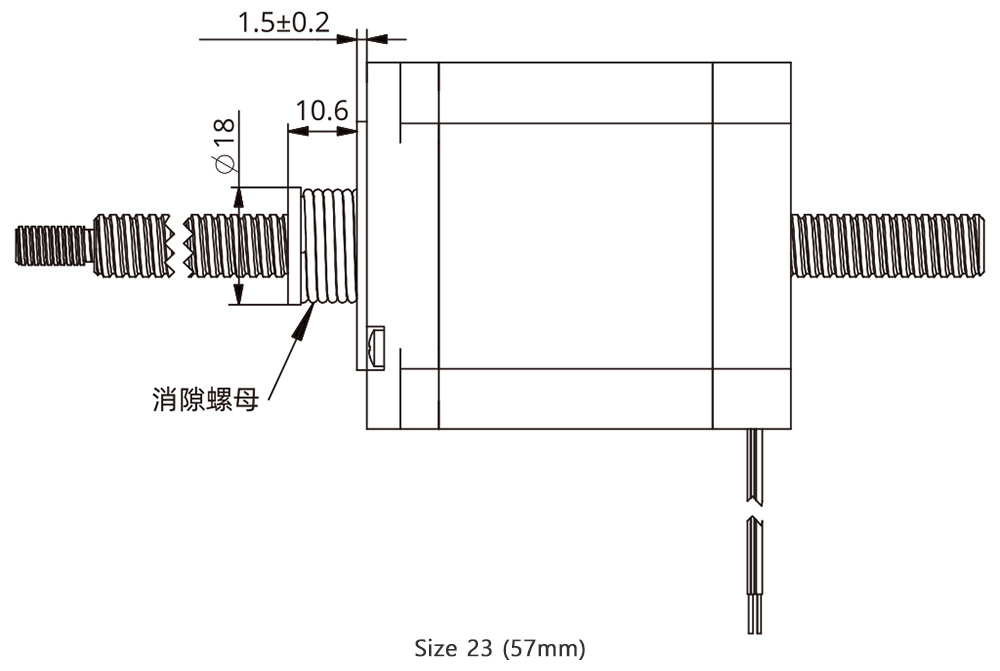

如客户应用环境中丝杆与螺母配合无需油脂，可选特氟龙涂覆。
与常规303不锈钢丝杆相比，特氟龙涂覆具有更长使用寿命以及高推力优势。
特氟龙涂覆适用于所有类型丝杆电机 外部驱动式, 贯通轴式、C型固定轴式气缸式、K型固定轴式
除此以外特氟龙涂覆也可与消间隙螺母配套使用。
In a mobile environment, you can move left and right to see the contents (tables).

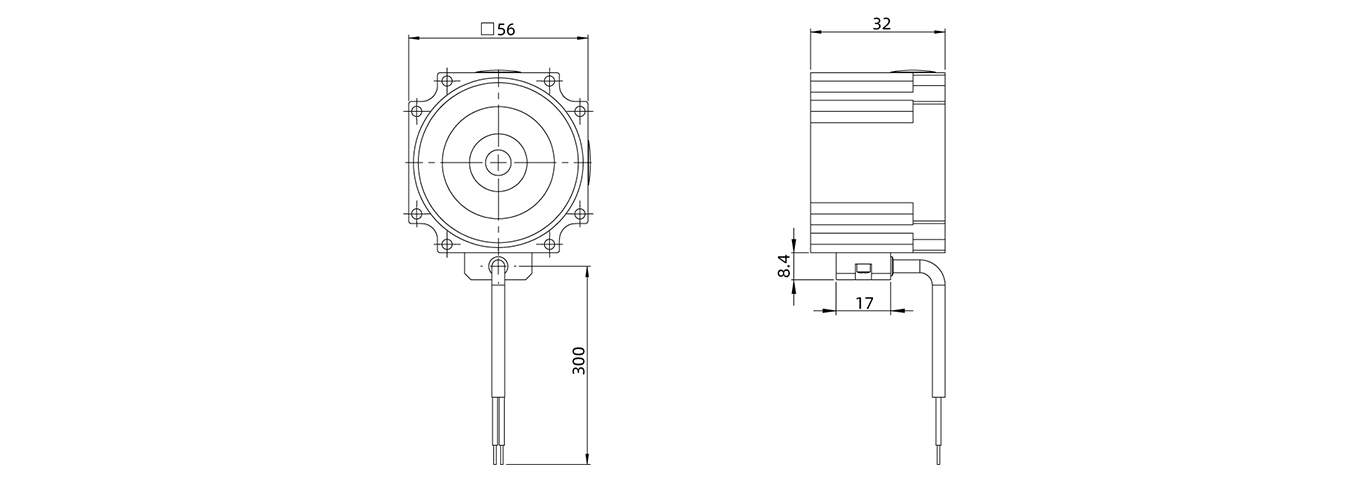

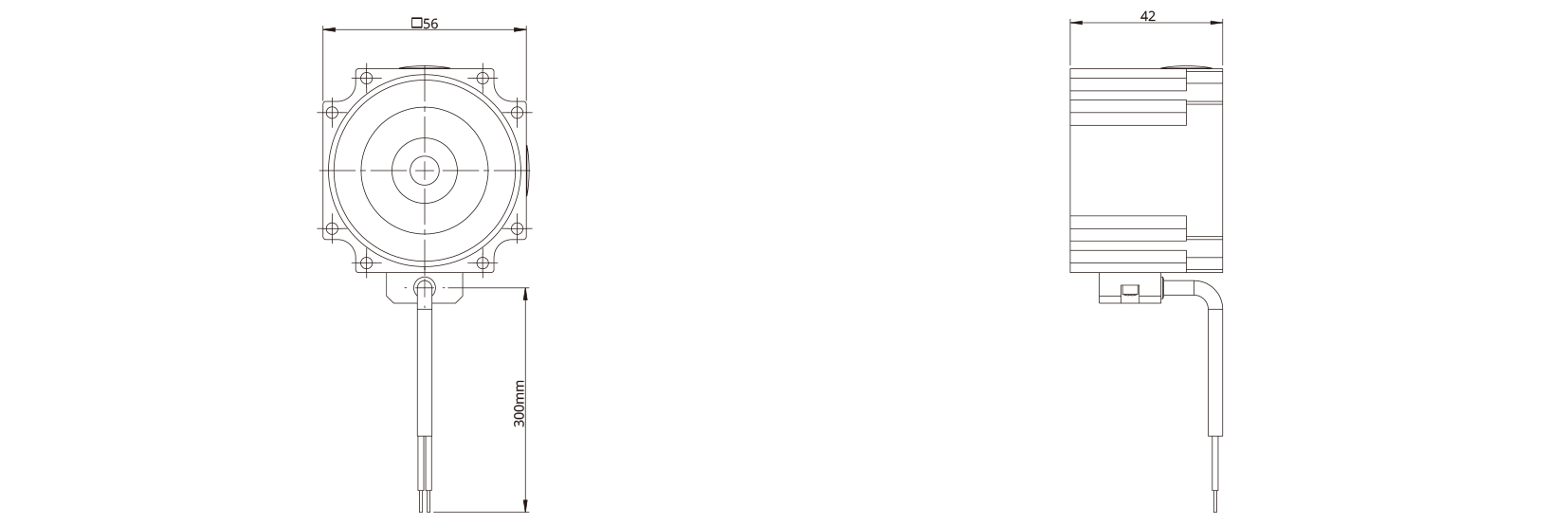

| 分辨率 [CPR] | 50 | 100 | 192 | 200 | 250 | 256 | 360 | 400 | 500 | 720 | 900 | 1000 | 1250 | 2000 | 2500 | 4000 | 5000 |
| 单端输出 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||||
| 差分输出 | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |

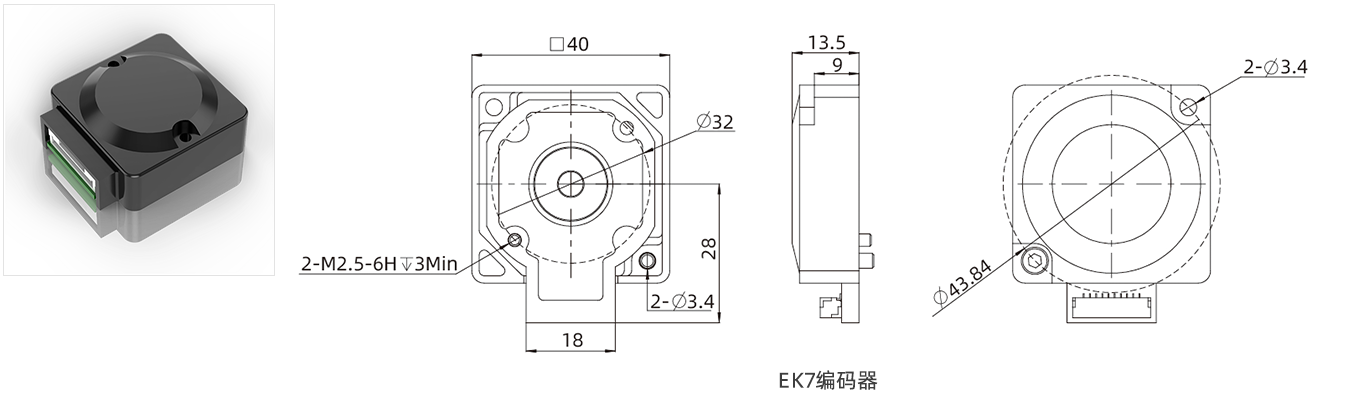

In a mobile environment, you can move left and right to see the contents (tables).
| 分辨率 [CPR] | 64 | 100 | 200 | 500 | 1000 | 1800 | 2000 | 2500 | 3600 | 4000 | 5000 | 7200 | 8000 | 10000 |
| 单端输出 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |||||
| 差分输出 | A | B | C | D | E | F | G | H | I | J | K | L | M |
* 对于NEMA23(57mm) 贯通轴式，C型固定轴和K型固定轴式，只有EK3编码器可用。
